• 4.88 axle ratio
• Rear wheel drive
• 78 amp/hr (750 CCA) maintenance-free battery
• 175 amp alternator
• Single channel ladder type frame w/36000 psi steel
• 7-wire harness trailer wiring w/relays, blunt cut & labeled
• I-beam front axle
• 12000# capacity Dana 80 rear axle
• 7000# capacity tapered multi-leaf front springs
• 12000# capacity tapered multi-leaf rear springs
• HD Bilstein gas shock absorbers
• Front & rear stabilizer bars
• HD front track bar pkg
• Dual rear wheels
• Pwr steering w/cooler
• Pwr 4-wheel disc hydroboost brakes
• 4-wheel 3-channel anti-lock brakes (ABS)

• (6) LT245/70R19.5G highway BSW tires (N/A w/20S Payload Upgrade Pkg)
• (6) LT225/70R19.5G highway BSW tires
• (6) 19.5" x 6.75" steel wheels

• Vinyl tilt steering wheel w/speed control
• Air conditioning prep pkg

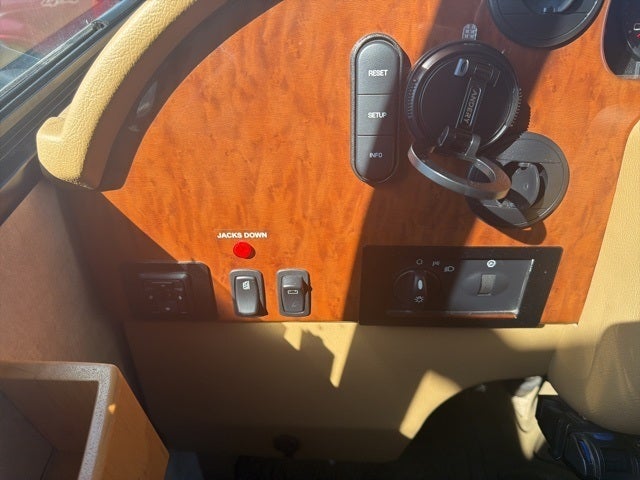

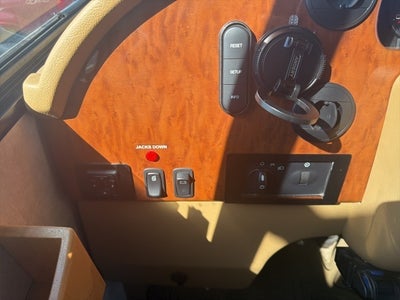

• Headlamp switch & knob assembly

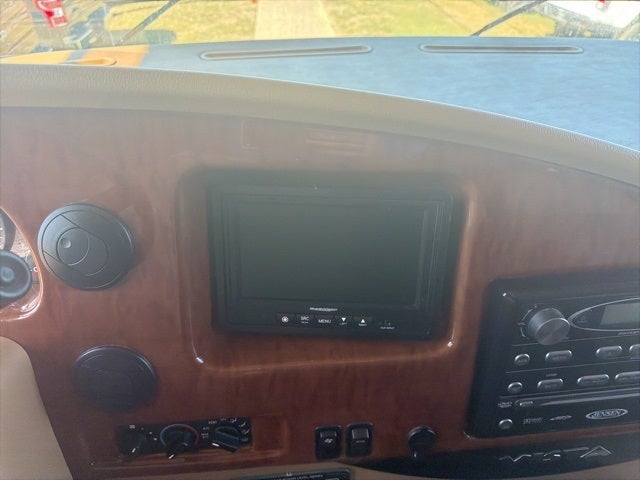

• Instrumentation -inc: speedometer, tachometer, odometer, trip odometer, oil pressure, coolant temp, fuel gauge, trans temp gauge, indicator lights, message center w/outside air temp, distance to empty

• Dual note horn

6.8L SOHC EFI 3-VALVE V10 TRITON ENGINE

• (STD)

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Maximum Alternator Capacity (amps): 175
• Cooling System
• Total Cooling System Capacity (qts): 27.5
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 7000
• Gross Axle Wt Rating - Rear (lbs): 12000
• Curb Weight - Front (lbs): 3374
• Curb Weight - Rear (lbs): 2767
• Gross Vehicle Weight Rating Cap (lbs): 18000
• Gross Combined Wt Rating (lbs): 26000
• Suspension
• Suspension Type - Front: Multi-Leaf
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 7000
• Spring Capacity - Rear (lbs): 12000
• Axle Type - Front: I-Beam
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 7000
• Axle Capacity - Rear (lbs): 12000
• Axle Ratio (:1) - Rear: 4.30
• Shock Absorber Diameter - Front (mm): 41.4
• Shock Absorber Diameter - Rear (mm): 41.4
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 15.55 x - TBD -
• Rear Brake Rotor Diam x Thickness (in): 15.55 x - TBD -
• Tires
• Front Tire Order Code: T96
• Rear Tire Order Code: T96
• Front Tire Size: LT245/70Rx19.5G
• Rear Tire Size: LT245/70Rx19.5G
• Front Tire Capacity (lbs): 3195
• Rear Tire Capacity (lbs): 3000
• Revolutions/Mile @ 45 mph - Front: 649
• Revolutions/Mile @ 45 mph - Rear: 649
• Wheels
• Front Wheel Size (in): 19.5 X 6.75
• Rear Wheel Size (in): 19.5 X 6.7
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 18.0
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 56.1
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 80
• Fuel Tank Location: LH, aft rear axle
• Exterior Dimensions
• Wheelbase (in): 208.0
• Length, Overall w/o rear bumper (in): 350.1
• Width, Max w/o mirrors (in): 94.8
• Overhang, Front (in): 36.3
• Overhang, Rear w/o bumper (in): 105.8
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): 34.0
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Interior Dimensions
• Passenger Capacity: 0
• Summary

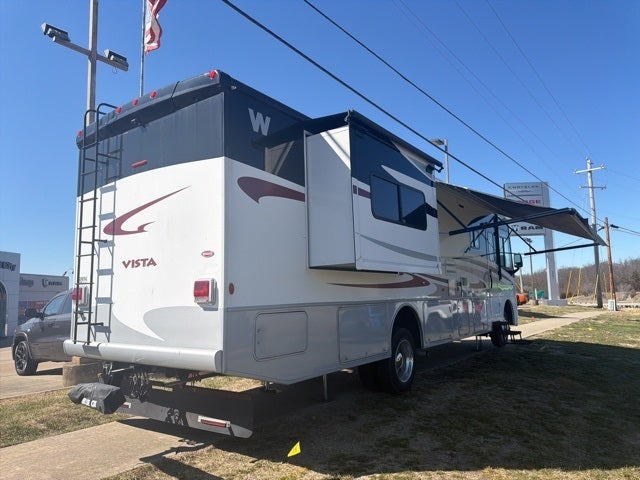

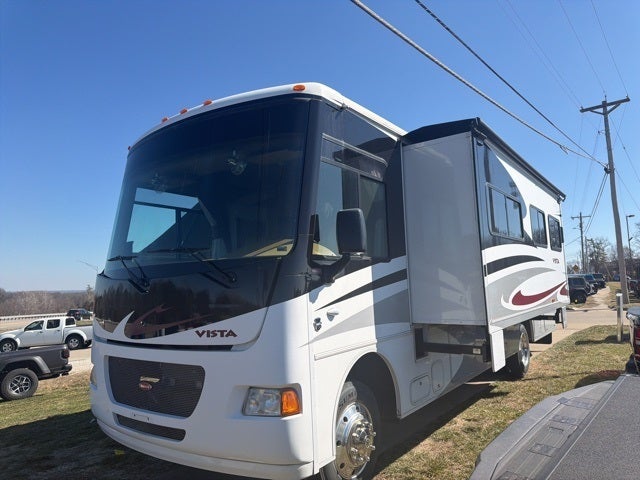

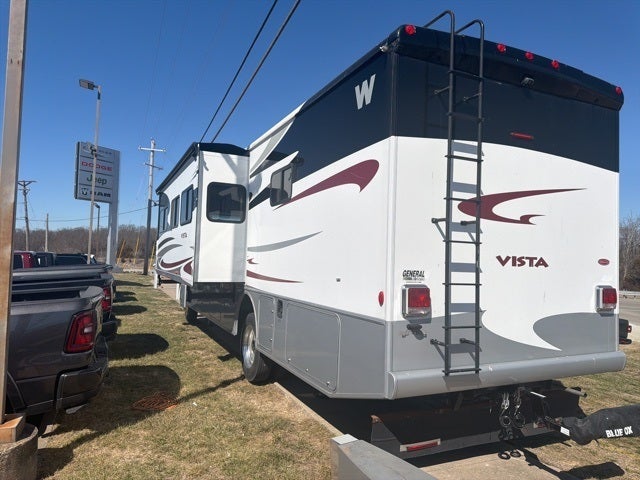

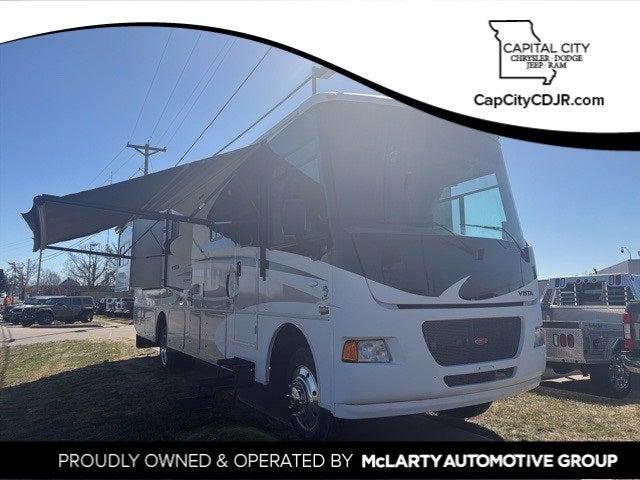

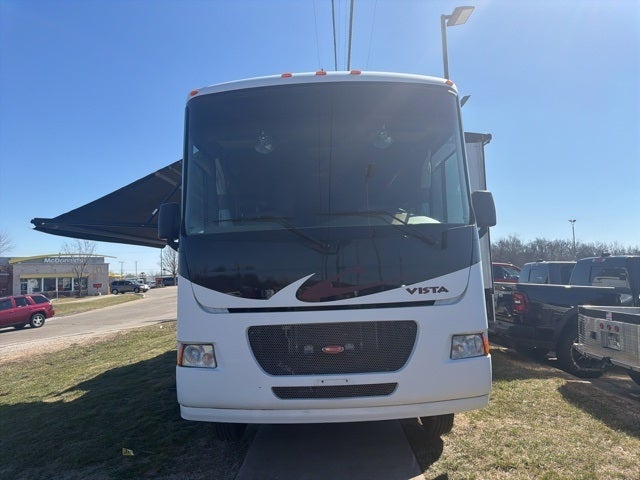

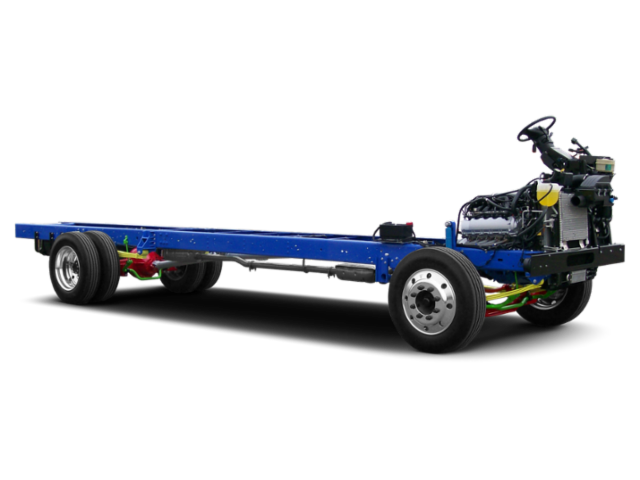

• Vehicle Name: Ford Super Duty F-53 Motorhome
• Body Style: Stripped Chassis DRW
• Body Code: F5D
