• LT225/75R16E all-season BSW tires
• 60/40 hinged side cargo door
• 16" x 7" styled steel wheels w/sport wheel covers
• Sport wheel covers
• Spare tire and wheel
• Black painted front bumper w/lower black plastic valence
• Black painted rear bumper
• Sealed beam headlights
• Aerotype manual mirrors w/spotters & RH convex lens
• Solar tinted glass
• Interval windshield wipers
• 50/50 hinged swing-out rear cargo door w/172-degree door checks

• AM/FM stereo -inc: digital clock, (6) speakers

• 8-passenger seating
• Front air conditioning
• Front vinyl bucket seats
• (2) 3-passenger rear bench seats
• Front inboard armrest
• Front vinyl floor covering
• Rear vinyl floor covering
• Black plastic stepwell pads
• Tilt steering wheel
• Medium flint instrument panel w/tachometer
• (4) 12-volt pwr points-inc: (2) instrument panel, (1) glove box, (1) located rear of driver
• Medium flint plastic front door trim panels
• Medium flint polypropylene side/rear quarter door trim panels
• Black cowl side trim panels
• Medium flint full-length acoustical cloth headliner
• Medium flint cloth/vinyl sunvisors
• Dual A-pillar grab handles
• Front dome light
• Rear cargo light
• Courtesy light switches for all doors
• Medium flint coat hooks

• 4-wheel anti-lock braking system (ABS)
• AdvanceTrac w/roll stability control
• Driver & front passenger 2nd generation airbags
• Front height adjustable 3-point safety belts
• Rear 3-point shoulder/lap safety belts in all positions
• Tire pressure monitoring system (TPMS)
• Dual note electric horn

4.6L EFI FFV V8 ENGINE

• (STD)

• GVWR: 8,520 lbs Payload Package
• 6 Speakers
• AM/FM radio
• Air Conditioning
• Power steering
• Traction control
• 4-Wheel Disc Brakes
• ABS brakes
• Dual front impact airbags
• Front anti-roll bar
• Front wheel independent suspension
• Low tire pressure warning
• Passenger cancellable airbag
• Electronic Stability Control
• Driver door bin
• Passenger seat mounted armrest
• Tachometer
• Tilt steering wheel
• Voltmeter
• 3rd row seats: bench
• Driver's Seat Mounted Armrest
• Front Bucket Seats
• Passenger door bin
• 16" Sport Wheel Covers
• 16" x 7" Steel Wheels
• Variably intermittent wipers

• Vehicle
• Rear Door Type: Panel
• Mileage
• Fuel Economy Est-Combined (MPG): 14
• EPA Fuel Economy Est - City (MPG): 13
• EPA Fuel Economy Est - Hwy (MPG): 13
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 650
• Maximum Alternator Capacity (amps): 120
• Maximum Alternator Watts: 1620
• Cooling System
• Total Cooling System Capacity (qts): 23.8
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3700
• Gross Axle Wt Rating - Rear (lbs): 5120
• Curb Weight - Front (lbs): 2880
• Curb Weight - Rear (lbs): 2328
• Gross Vehicle Weight Rating Cap (lbs): 8520
• Gross Combined Wt Rating (lbs): 12000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6100
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 915
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 3700
• Spring Capacity - Rear (lbs): 5120
• Axle Type - Front: Twin I-Beam
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 5000
• Axle Capacity - Rear (lbs): 5520
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 35.0
• Shock Absorber Diameter - Rear (mm): 35.0
• Stabilizer Bar Diameter - Front (in): 1.00
• Brakes
• Brake Type: Pwr
• Brake ABS System: Four Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.58 x 0.5
• Rear Brake Rotor Diam x Thickness (in): 13.58 x 0.35
• Tires
• Front Tire Order Code: T37
• Rear Tire Order Code: T37
• Front Tire Size: LT225/75R16E
• Rear Tire Size: LT225/75R16E
• Spare Tire Size: LT225/75R16E
• Front Tire Capacity (lbs): 2680
• Rear Tire Capacity (lbs): 2680
• Spare Tire Capacity (lbs): 2680
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 7
• Rear Wheel Size (in): 16 x 7
• Spare Wheel Size (in): 16 x 7
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.0
• Steering Ratio (:1), At Lock: 17.0
• Turning Diameter - Curb to Curb (ft): 48.6
• Turning Diameter - Wall to Wall (ft): 50.1
• Frame
• Frame Type: Single-Channel
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 33
• Fuel Tank Location: Midship
• Doors
• Side Door Type: Hinged 60/40
• Exterior Dimensions
• Wheelbase (in): 138.0
• Length, Overall w/rear bumper (in): 216.7
• Width, Max w/o mirrors (in): 79.4
• Height, Overall (in): 82.4
• Overhang, Front (in): 34.9
• Overhang, Rear w/bumper (in): 43.8
• Ground to Top of Load Floor (in): 28.0
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Rear Door Opening Height (in): 49.5
• Rear Door Opening Width (in): 53.9
• Side Door Opening Height (in): 48.2
• Side Door Opening Width (in): 44.8
• Step Up Height - Front (in): - TBD -
• Step Up Height - Side (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): 138.7
• Cargo Area Length @ Floor to Seat 1 (in): 122.4
• Cargo Area Length @ Floor to Seat 2 (in): 84.9
• Cargo Area Length @ Floor to Seat 3 (in): 51.4
• Cargo Area Length @ Floor to Seat 4 (in): 20.8
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 52.5
• Cargo Box (Area) Height (in): 48.2
• Cargo Volume to Seat 1 (ft³): 237.8
• Cargo Volume to Seat 2 (ft³): - TBD -
• Cargo Volume to Seat 3 (ft³): - TBD -
• Cargo Volume to Seat 4 (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 8
• Front Head Room (in): 42.0
• Front Leg Room (in): 40.0
• Front Shoulder Room (in): 68.1
• Front Hip Room (in): 65.6
• Second Head Room (in): 40.2
• Second Leg Room (in): 38.8
• Second Shoulder Room (in): 71.7
• Second Hip Room (in): 66.5
• Third Head Room (in): 40.1
• Third Leg Room (in): 40.0
• Third Shoulder Room (in): 71.7
• Third Hip Room (in): 66.8
• Summary

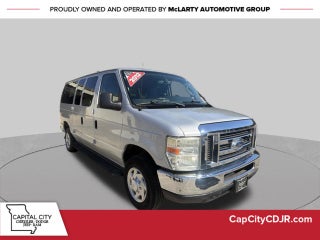

• Vehicle Name: Ford Econoline Wagon
• Body Style: Reg Passenger Van
• Body Code: 138.0" WB
• Emissions
• EPA Greenhouse Gas Score: 1
• Tons/yr of CO2 Emissions @ 15K mi/year: 13.3
